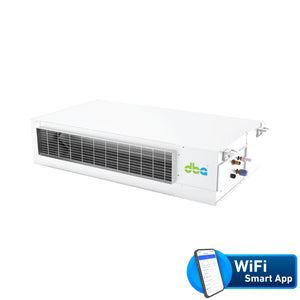

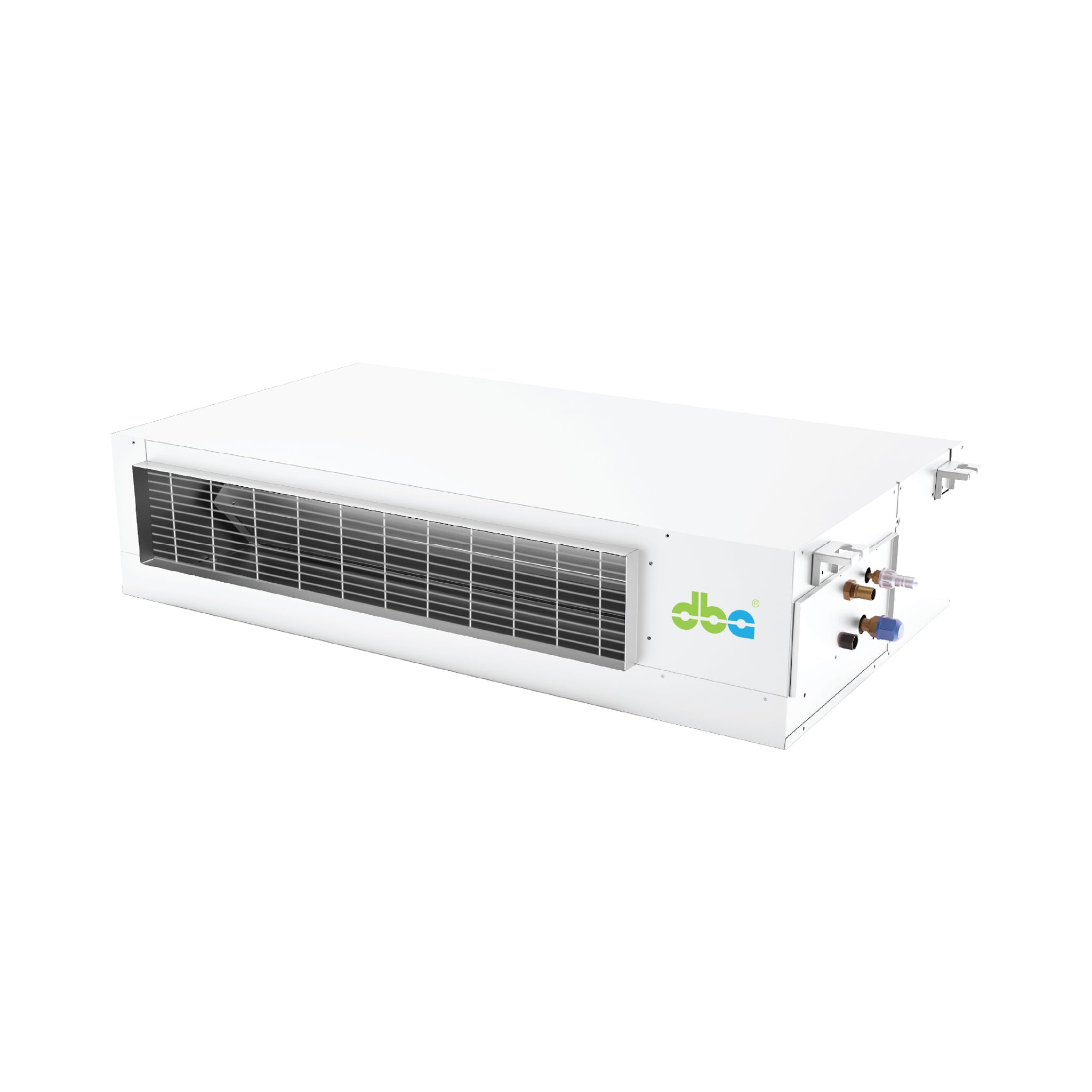

Climate Control Unit DBA-THC50
Experience a new level of indoor comfort with the Climate Control Unit. This smart system goes beyond ordinary air conditioning, offering precise control over temperature and humidity. Key features include:
- Smart Climate Control: Automatically adjusts temperature and humidity based on your room's conditions.
- Humidification: Gently adds moisture to the air, relieving dryness and creating a more comfortable environment.
- Dedicated Dehumidification System: Provides gentle and effective humidification to alleviate dryness.
- PTC Heating Element: PTC element delivers rapid and even heat distribution.
- Energy-Saving Design: Minimize energy consumption while maximizing comfort.
Specification
| Model | DBA-THC50 |
| Outdoor Unit Specification | |
| Outdoor Unit | DBA-THC50-X |
| Voltage | 220-240V~50Hz |
| Cooling Power | 1500W |
| Cooling Current | 6.90A |
| Heating Power | 1560W |
| Heating Current | 7.20A |
| Maximum Power | 2500W |
| Maximum Current | 11.5A |
| IP Rating | IPX4 |
| Sound Level | 58dB(A) |
| Refrigerant | R410A/1300g |
| Operating Pressure Suction Side | 1.5MPa |
| Operating Pressure Discharge Side | 4.3MPa |
| Maximum Allowable Pressure | 4.3MPa |
| Weight | 34kg |
| Dimension | 802 × 564 × 323 mm |
| Indoor Unit Specification | |
| Indoor Unit | DBA-THC50-Y |
| Voltage | 220-240V~50Hz |
| Electric Shock Protection Class | Class I |
| Cooling Capacity | 5000W |
| Heating Capacity | 5000W |
| Cooling Power | 1500W |
| Heating Power | 1560W |
| Humidification Capacity | 1.5kg/hr |
| PTC Heating Power | 2000W |
| Maximum Power | 2500W + 2000W (PTC) |
| Maximum Current | 11.5A + 10A (PTC) |
| EER | 3.22 |
| COP | 3.2 |
| Airflow | 650CMH |
| External Static Pressure | 50Pa |
| Sound Level | 50dB(A) |
| Refrigerant | R410A/1300g |
| Operating Pressure Suction Side | 1.5MPa |
| Operating Pressure Discharge Side | 4.3MPa |
| Maximum Allowable Pressure | 4.3MPa |
| Heat Exchanger Maximum Pressure | 4.3MPa |
| Weight | 35.5kg |
| Dimension | 1000 × 585 × 240 mm |
